Heart Flow: An interactive and engaging experience for beginners to try Water Marbling


OVER VIEW

COOPERATION



Heart Flow is an interactive installation, that could intelligently generate unique Water Marbling art pieces according to creators' heartbeat data.
It aims to reduce beginners' learning cost for Water Marbling and arouse their further interest, through a relaxing and highly relevant creating experience.

INTERACTIVE INSTALLATION DESIGN

Co-worked with my partner Ruiyao Luo

MY ROLE

Idea generation, appearance and structure design, interaction design, circuit building, digital modeling, prototyping, Arduino coding, display arrangement

DURATION

2 Months, 2018 Winter

BACKGROUND

Designing for popularizing Water Marbling, a traditional paper decoration

craft.

Water Marbling ( 墨流)is a kind of paper decoration craft born in China two thousand years ago. After the 12th century, it was introduced to Japan and Turkey, promoted with new names called ' Suminagashi' and ' Erub'.

It is a floating dyeing technique. Creators use oily pigments to create beautiful patterns on the water surface by dripping, blowing and paddling. And then transfer the elegant patterns to paper for preservation.


THE CHALLENGE

How might we introduce the technique to beginners who lack artistic creation skills, and provide them with a highly relevant creating experience?

THE SOLUTION

An interactive experience that not only engagingly displays the process, but could also generate unique Water Marbling art piece according to creator's heartbeat data as a memento.



IDEATION

How to generate patterns under control?

Brain storm: the mechanical plans for dripping, paddling and blowing the pigments on the water surface.

资源 15@4x-8.png
DSC_5845(1)
press to zoom
DSC_5843_edited
press to zoom
DSC_5833(1)
press to zoom
DSC_5858
press to zoom
1/1

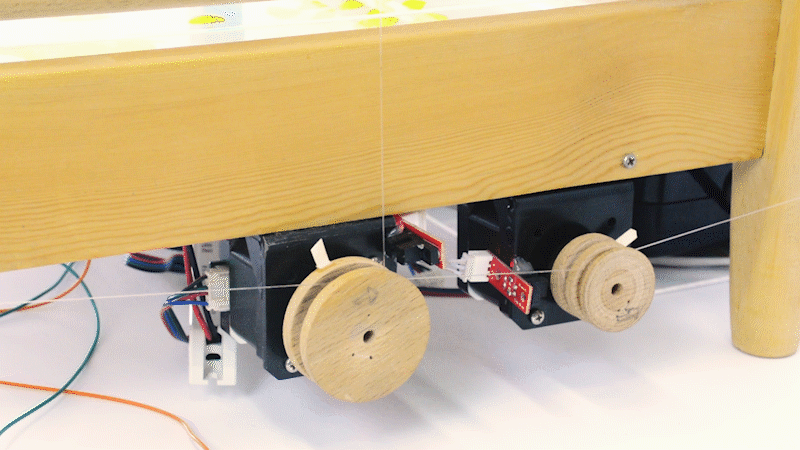

Considering degrees of freedom, aesthetic factors and controllability of the drip nozzle, we chose to suspend the nozzle with three strings. Fix the spool on the axis of the stepper motor, control the moving path of the nozzle by setting the rotation angle of the stepper motor to adjust the length of the wire. When the nozzle moves to the set position, pigments in the nozzle will be blew out onto the water surface by the electric air valve.

How to interact with the installation?

The decided operation flow for audiences to create Water Marbling according to their heartbeat data.

资源 14@4x-8.png

Firstly, the creator wears the sensor module on the hand. The sensor collects his heartbeat data and transmits it to the processor through the attached Bluetooth module.

Secondly, the processor translates the heartbeat data into 3D coordinate instructions and sends them to the motor controller. Then the motor controls the nozzle to absorb pigments from bottles, move to a series of coordinate points and spray the ink onto the water surface. When the elegant patterns are generated, the creator could transfer the pattern from the water surface to paper materials.



MODELING

Design the form and layout electrical components

3D modeling of the main installation and the wearable part

资源 15_4x-8.png
资源 15_4x-8.png

1. Slider 2. Airway 3. Dropper 4. Water tank

5. Pigment bin 6. Button switch  7. Suction pump

8. Exhaust pump 9. Circuit board 10. Coiling wheel

11. Power Supply 12. Lilypad 13. Battery 14. Bluetooth

15. Heartbeat sensor 16. switch

最新的调整1.61
press to zoom
最新的调整1.62
press to zoom
最新的调整1.64
press to zoom
最新的调整1.65
press to zoom
1/1

Components of the main body

Right

Front

It includes two sets of electric system, which are the motor dynamic system to control the movement of the nozzle, and the pneumatic system to control the nozzle to absorb and spray pigments.

资源 6.png
资源 6.png
资源 3_4x.png

Top

资源 13_4x.png
OVERALL.812222626
press to zoom
OVERALL.812222629
press to zoom
OVERALL.812222620
press to zoom
OVERALL.812222625
press to zoom
1/1

Components of the wearable part

Right

The wearable part includes lilypad, Bluetooth module, heart rate sensor, switch and battery

资源 3_4x.png
资源 9_4x.png
资源 3_4x.png
资源 6_4x.png

Top

Front



BUILDING

Building the frames and assembling electrical components

Wearable sensor —the data collector and generator


By means of drilling, milling, lathing and grinding, wooden brackets with appropriate size are machined. And then, embed electronic components in them. Use mortise tenon structures and steel bars to fix each other together, and finally connect the wires and weld them.

Lathing the holder
press to zoom
Mortising
press to zoom
IMG_1320
press to zoom
Holder for sensor
press to zoom
Welding
press to zoom
暖的
press to zoom
Inlaying the sensor
press to zoom
Assembling
press to zoom
小的
press to zoom
1/1

Main body——the signal receiver and actuator


Machined and assembled wooden frame components by means of cutting, grooving, lathing and grinding. And then, attached the electric motors on the corresponding frames. Installed the pneumatic system and dynamic system. Connected and adjusted the wiring of the control module.

Table saw cutting
press to zoom
Lathing the nozzle
press to zoom
Finish cut details
press to zoom
Bench drilling
press to zoom
1
press to zoom
Frame assembling
press to zoom
Building the circuit
press to zoom
2018-06-12 205434
press to zoom
小的
press to zoom
1/1


PROGRAMMING

Measuring and calculating the dimension,

programming rules for coordinate movements


In the manufacturing process, due to the change of temperature and humidity, the wood frame has inevitable natural deformation, which slightly affects the preset coordinate system size. After strict recalculation, this error is finally corrected

OPERATION RECORDS

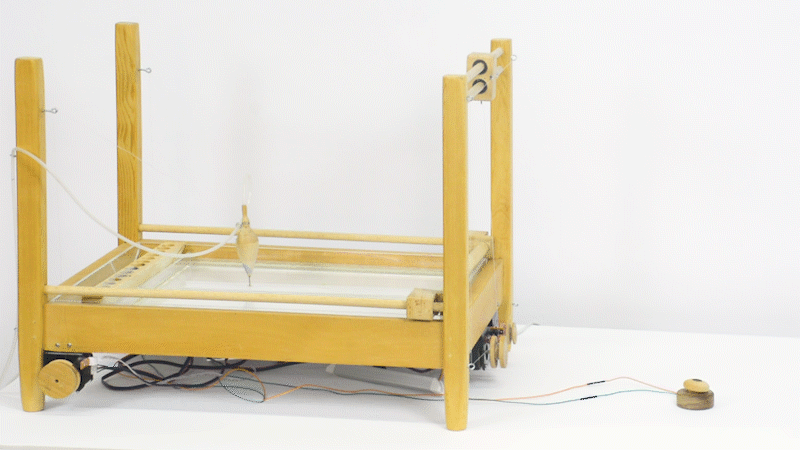

THE FINAL LOOK



_DSC5045-%E6%81%A2%E5%A4%8D%E7%9A%841_ed

AUDIENCES' EXPERIENCE



u%3D701693200%2C1682489362%26fm%3D26%26g

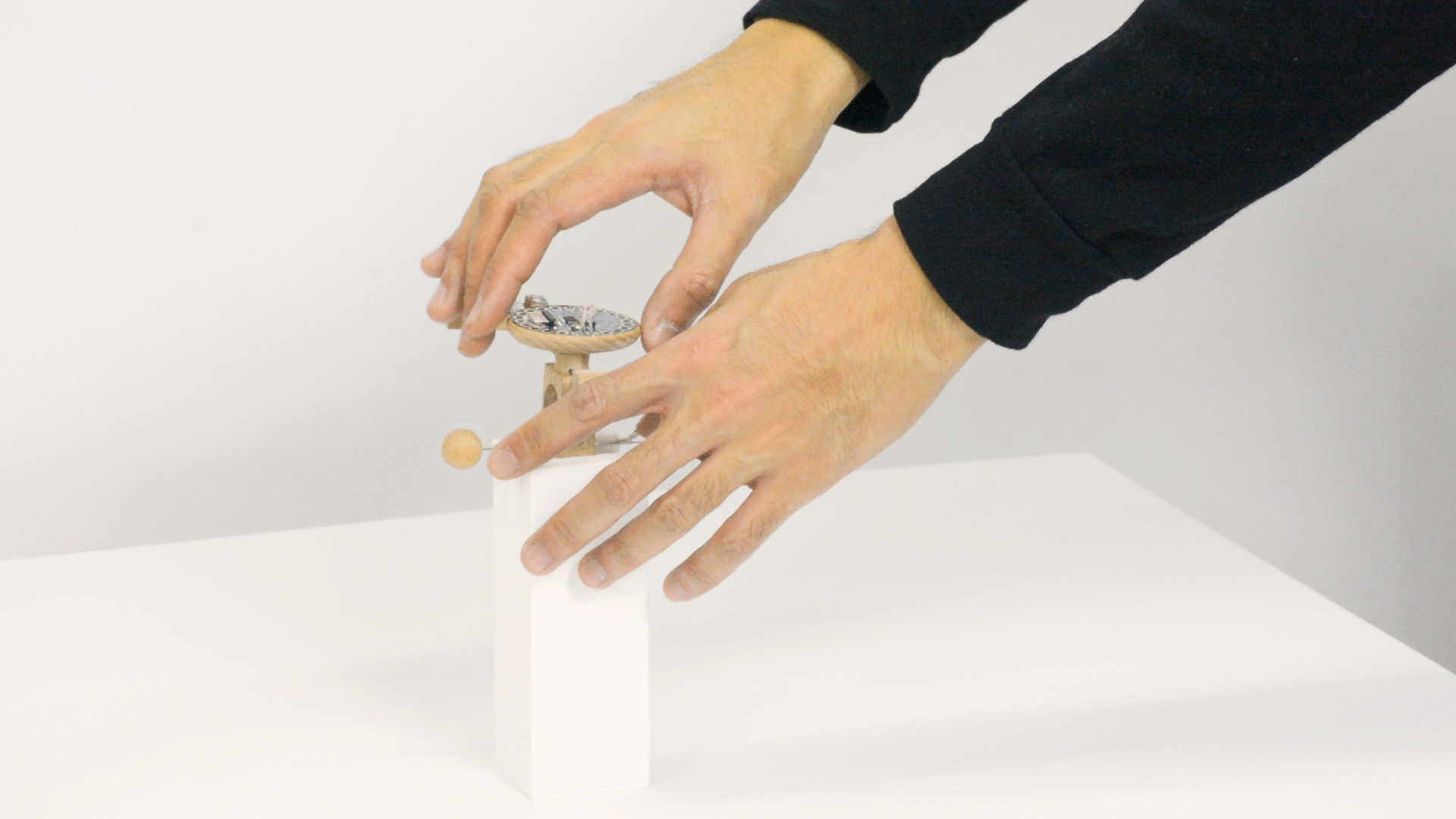

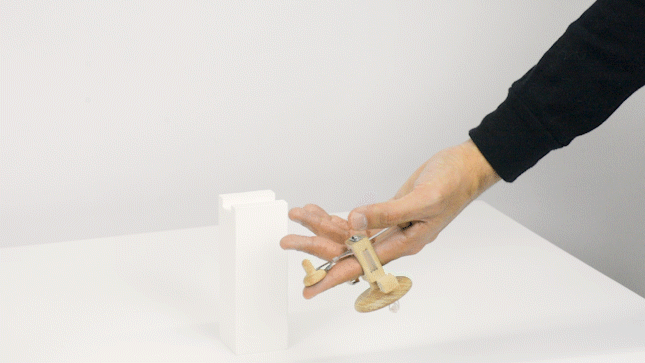

Wear and activate

the sensor

_DSC493801
press to zoom
_DSC5226020
press to zoom
1/1
u%3D701693200%2C1682489362%26fm%3D26%26g

Start the conversion

Press the power

button, turn it on


 1

u%3D701693200%2C1682489362%26fm%3D26%26g

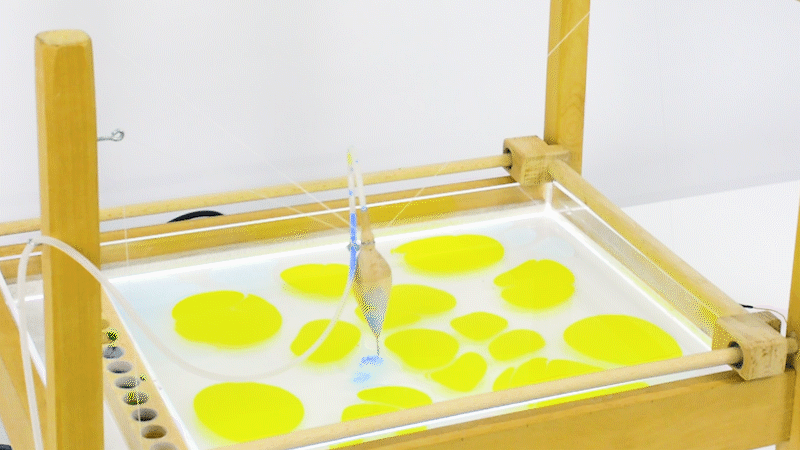

Pattern generation

Waiting for the

dripping & paddling


u%3D701693200%2C1682489362%26fm%3D26%26g

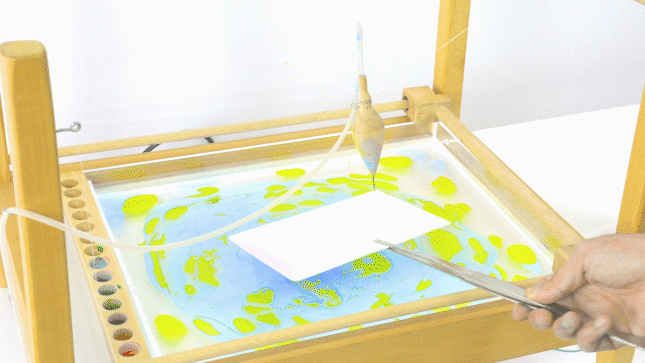

Transfer & Save

Transfer the patterns

from water to paper


COLLECTED WATER MARBLING WORKS

6_edited
press to zoom
10_edited
press to zoom
1/4
7
1
5
8
6
2
3
4
